Airtable part 6: Incoming air and pressure control

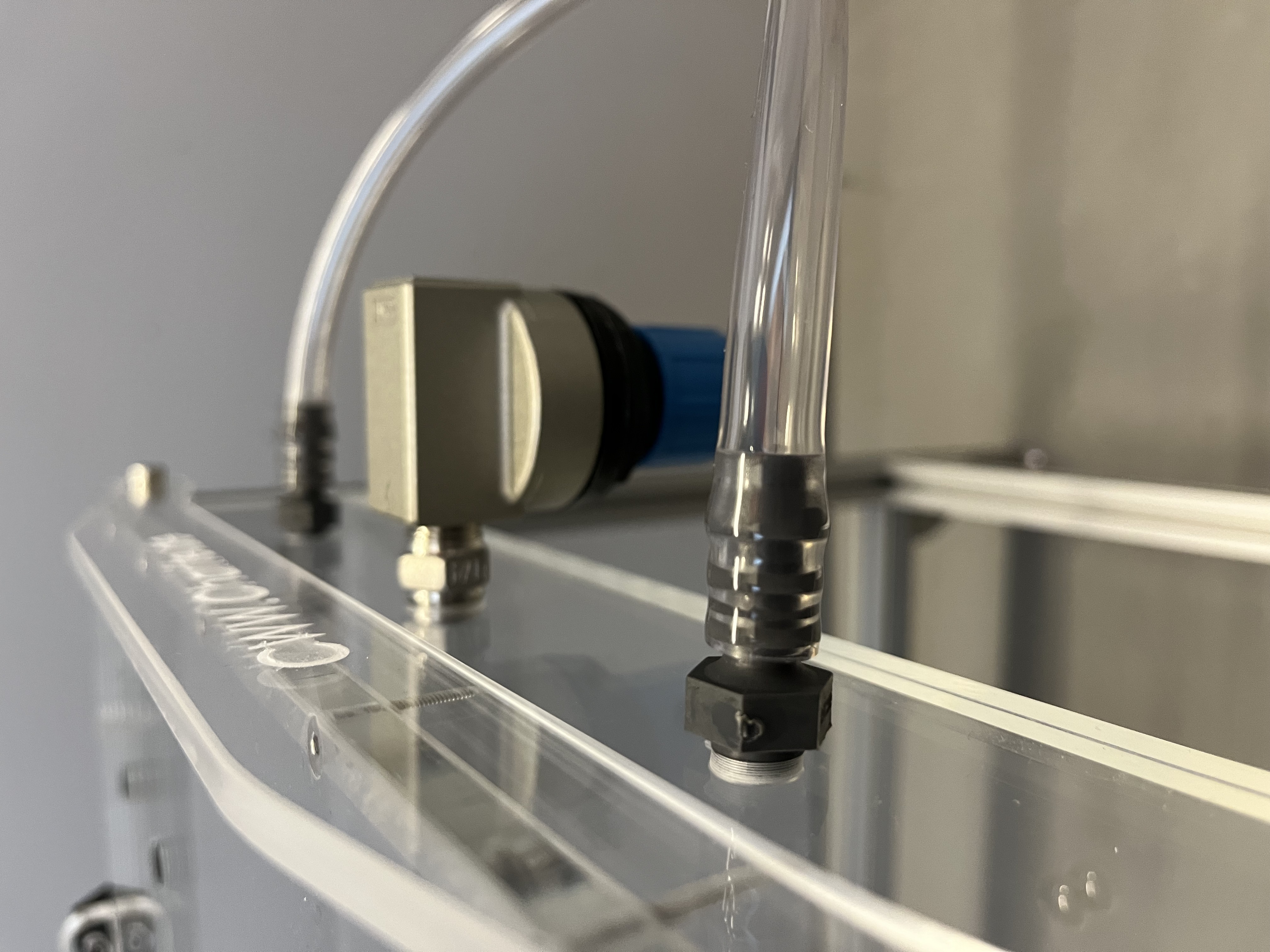

Picture of the pressure relief valve and incoming air pressure tubes

Inserting of hose connection gland and pressure relief valve {pagestep}

These components take care of the incoming air and protection against overpressure.

• Both following components will be placed at the short air table side with G 1/8” and G 1/4” thread predrills.

• Insert the reducing fitting{Qty:1} in the G 1/4” thread.

• Place on the reducing fitting the pressure relief valve{Qty:1}.

• Place inside the G 1/8” threads the hose connection glands{Qty:2}.

Air hose {pagestep}

• Combine two 200 mm compressed air hose{Qty:2} with an Y-hose connector{Qty:1}.

• Append to the in one direction pointing end of the Y-hose connector another compressed air hose with the length of your need to the air pressure source.

• Connect both 200 mm compressed air hose with the hose connection glands.

You have build the [center air table]{output, qty:1} now.
